Easy! Hard Disk Encryption with veracrypt

hard disk encryption

Updated July 18th, 2019

VeraCrypt is a free and open source disk encryption software and is based on the most famous TrueCrypt. It adds enhanced security to the algorithms used for system and partitions encryption making it immune to new developments in brute-force attacks. It also solves many vulnerabilities and security issues found in TrueCrypt.

This enhanced security adds some delay ONLY to the opening of encrypted partitions without any performance impact to the application use phase. This is acceptable to the legitimate owner but it makes it much harder for an attacker to gain access to the encrypted data. VeraCrypt is compatible with truecrypt and can mount TrueCrypt volumes. It also can convert them to VeraCrypt format.

Step 1. If you have not done so, download and install VeraCrypt. Then launch VeraCrypt by double-clicking the file VeraCrypt.exe or by clicking the VeraCrypt shortcut in your Windows Start menu.

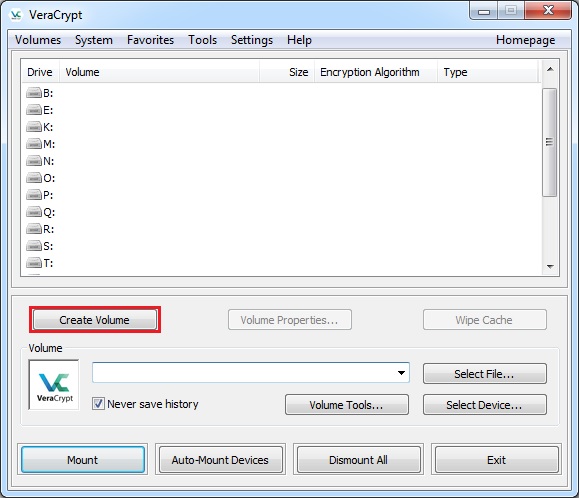

Step 2. The main VeraCrypt window should appear. Click Create Volume (marked with a red rectangle for clarity).

step2

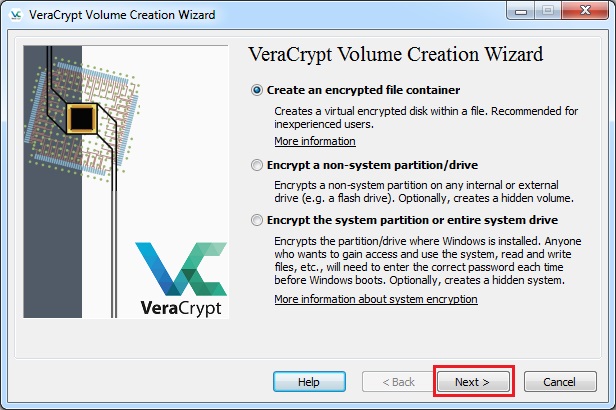

Step 3. The VeraCrypt Volume Creation Wizard window should appear. In this step you need to choose where you wish the VeraCrypt volume to be created. A VeraCrypt volume can reside in a file, which is also called container, in a partition or drive. In this tutorial, we will choose the first option and create a VeraCrypt volume within a file. As the option is selected by default, you can just click Next. Note: In the following steps, the screenshots will show only the right-hand part of the Wizard window.

step3

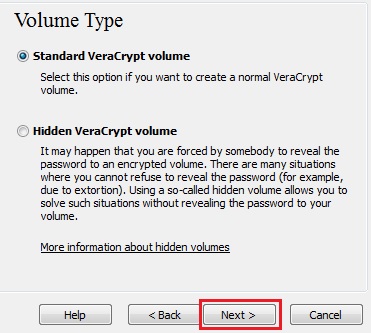

Step 4. In this step you need to choose whether to create a standard or hidden VeraCrypt volume. In this tutorial, we will choose the former option and create a standard VeraCrypt volume. As the option is selected by default, you can just click Next.

step4

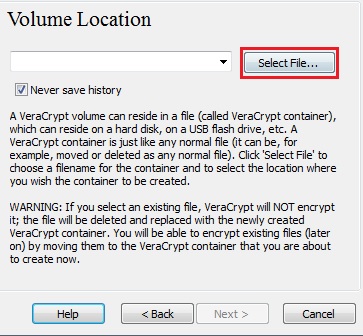

Step 5. In this step you have to specify where you wish the VeraCrypt volume (file container) to be created. Note that a VeraCrypt container is just like any normal file. It can be, for example, moved or deleted as any normal file. It also needs a filename, which you will choose in the next step.
Click Select File.
The standard Windows file selector should appear (while the window of the VeraCrypt Volume Creation Wizard remains open in the background).

step5

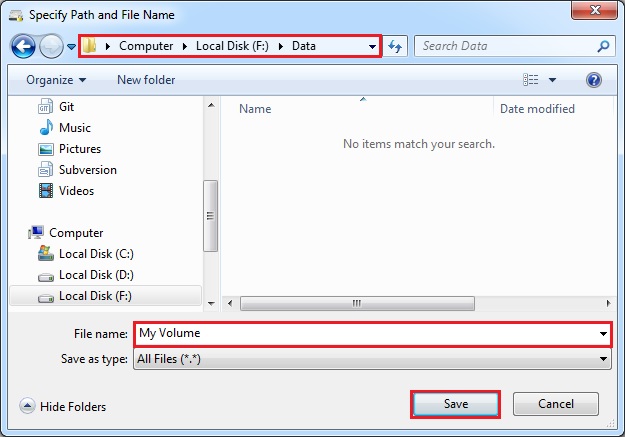

Step 6. In this tutorial, we will create our VeraCrypt volume in the folder F:\Data\ and the filename of the volume (container) will be My Volume (as can be seen in the screenshot above). You may, of course, choose any other filename and location you like (for example, on a USB memory stick). Note that the file My Volume does not exist yet – VeraCrypt will create it.

IMPORTANT: Note that VeraCrypt will not encrypt any existing files (when creating a VeraCrypt file container). If you select an existing file in this step, it will be overwritten and replaced by the newly created volume (so the overwritten file will be lost, not encrypted). You will be able to encrypt existing files (later on) by moving them to the VeraCrypt volume that we are creating now.*

Select the desired path (where you wish the container to be created) in the file selector. Type the desired container file name in the Filename box.
Click Save.
The file selector window should disappear.
In the following steps, we will return to the VeraCrypt Volume Creation Wizard.

* Note that after you copy existing unencrypted files to a VeraCrypt volume, you should securely erase (wipe) the original unencrypted files. There are software tools that can be used for the purpose of secure erasure (many of them are free).

step6

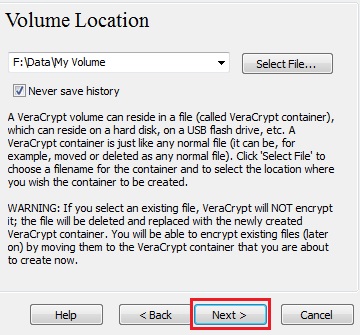

Step 7. In the Volume Creation Wizard window, click Next.

step7

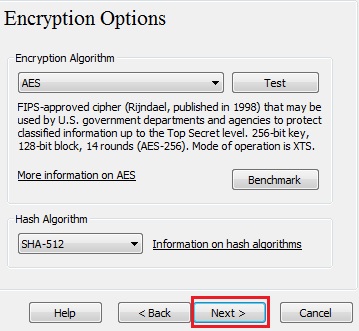

Step 8. Here you can choose an encryption algorithm and a hash algorithm for the volume. If you are not sure what to select here, you can use the default settings and click Next

step8

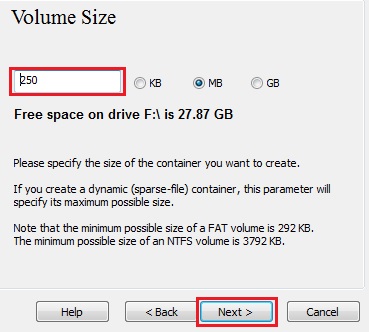

Step 9. Here we specify that we wish the size of our VeraCrypt container to be 250 megabyte. You may, of course, specify a different size. After you type the desired size in the input field (marked with a red rectangle), click Next.

step9

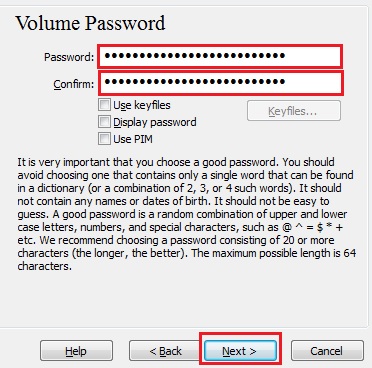

Step 10. This is one of the most important steps. Here you have to choose a good volume password. Read carefully the information displayed in the Wizard window about what is considered a good password.
After you choose a good password, type it in the first input field. Then re-type it in the input field below the first one and click Next. Note: The button Next will be disabled until passwords in both input fields are the same.

step10

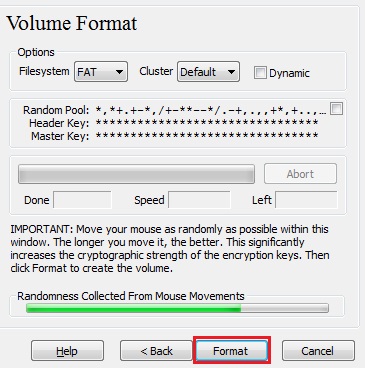

Step 11. Move your mouse as randomly as possible within the Volume Creation Wizard window at least until the randomness indicator becomes green. The longer you move the mouse, the better (moving the mouse for at least 30 seconds is recommended). This significantly increases the cryptographic strength of the encryption keys (which increases security).

Click Format.

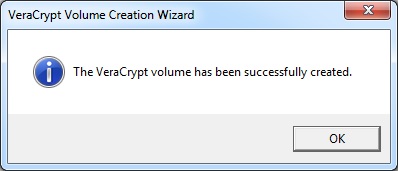

Volume creation should begin. VeraCrypt will now create a file called My Volume in the folder F:\Data\ (as we specified in Step 6). This file will be a VeraCrypt container (it will contain the encrypted VeraCrypt volume). Depending on the size of the volume, the volume creation may take a long time. After it finishes, the following dialog box will appear:

step11

Click OK to close the dialog box.

step11-1

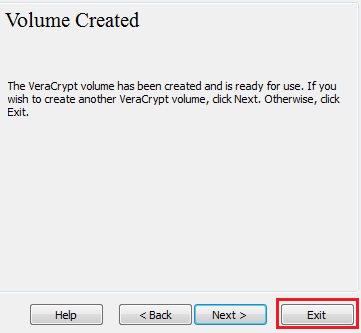

Step 12. We have just successfully created a VeraCrypt volume (file container). In the VeraCrypt Volume Creation Wizard window, click Exit.
The Wizard window should disappear.
In the remaining steps, we will mount the volume we just created. We will return to the main VeraCrypt window (which should still be open, but if it is not, repeat Step 1 to launch VeraCrypt and then continue from Step 13.)

step12

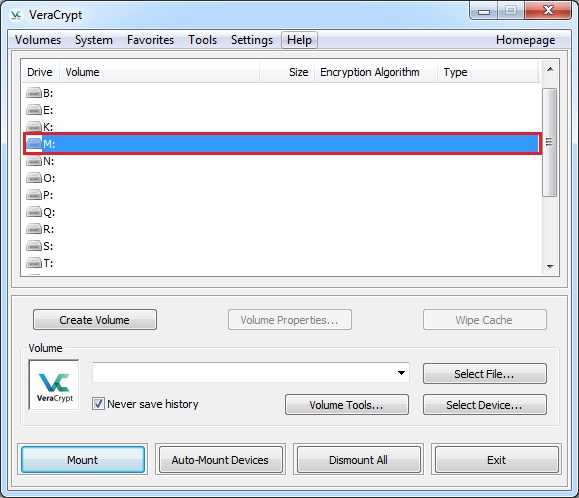

Step 13. Select a drive letter from the list (marked with a red rectangle). This will be the drive letter to which the VeraCrypt container will be mounted.

Note: In this tutorial, we chose the drive letter M, but you may of course choose any other available drive letter.

step13

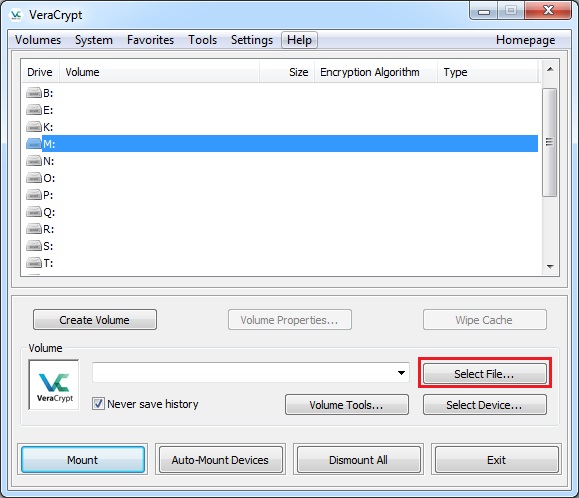

Step 14. Click Select File.

step14

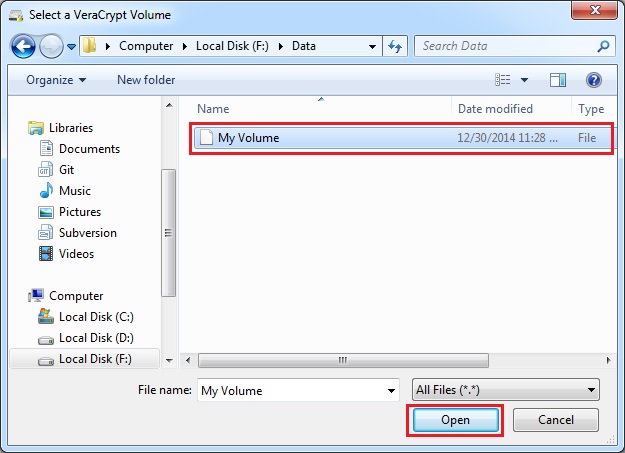

Step 15. In the file selector, browse to the container file (which we created in Steps 6-12) and select it. Click Open (in the file selector window).
The file selector window should disappear.
In the following steps, we will return to the main VeraCrypt window.

step15

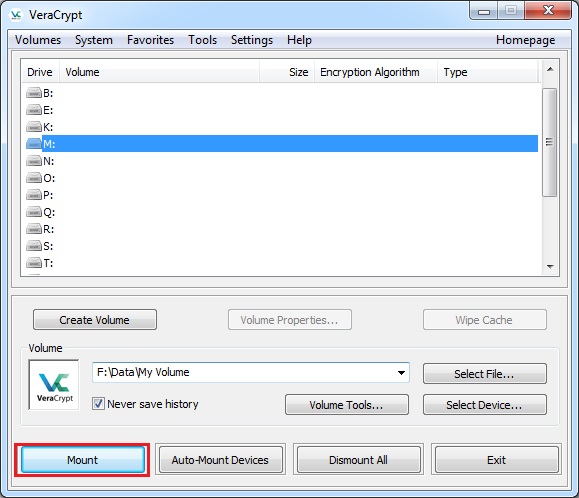

Step 16. In the main VeraCrypt window, click Mount. Password prompt dialog window should appear.

step16

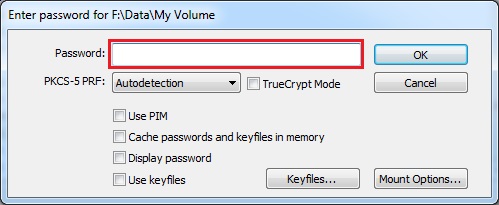

Step 17. Type the password (which you specified in Step 10) in the password input field (marked with a red rectangle).

step17

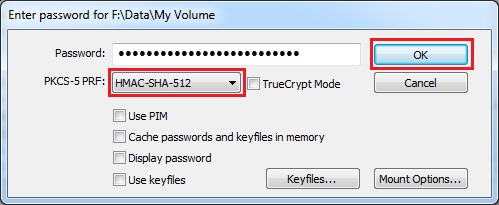

Step 18. Select the PRF algorithm that was used during the creation of the volume (SHA-512 is the default PRF used by VeraCrypt). If you don’t remember which PRF was used, just leave it set to “autodetection” but the mounting process will take more time. Click OK after entering the password.

VeraCrypt will now attempt to mount the volume. If the password is incorrect (for example, if you typed it incorrectly), VeraCrypt will notify you and you will need to repeat the previous step (type the password again and click OK). If the password is correct, the volume will be mounted.

step18

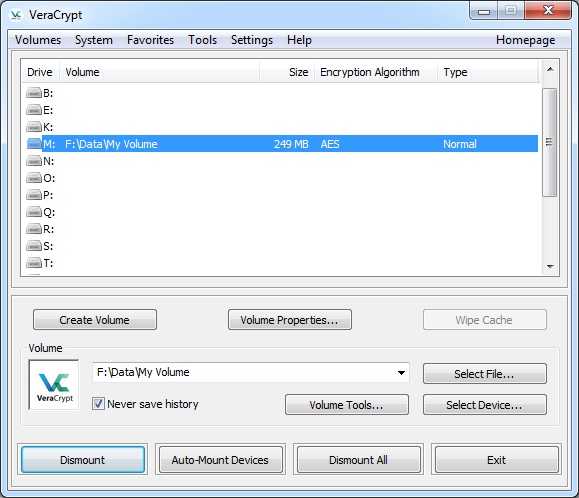

Final Step. We have just successfully mounted the container as a virtual disk M:

The virtual disk is entirely encrypted (including file names, allocation tables, free space, etc.) and behaves like a real disk. You can save (or copy, move, etc.) files to this virtual disk and they will be encrypted on the fly as they are being written.

If you open a file stored on a VeraCrypt volume, for example, in media player, the file will be automatically decrypted to RAM (memory) on the fly while it is being read.

Important: Note that when you open a file stored on a VeraCrypt volume (or when you write/copy a file to/from the VeraCrypt volume) you will not be asked to enter the password again. You need to enter the correct password only when mounting the volume.

You can open the mounted volume, for example, by selecting it on the list as shown in the screenshot above (blue selection) and then double-clicking on the selected item.

inal step

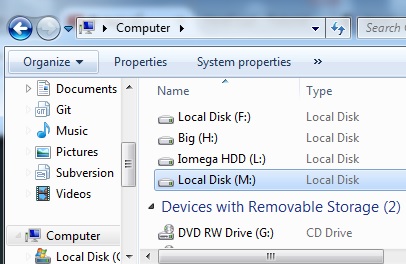

You can also browse to the mounted volume the way you normally browse to any other types of volumes. For example, by opening the ‘Computer’ (or ‘My Computer’) list and double clicking the corresponding drive letter (in this case, it is the letter M).

last

You can copy files (or folders) to and from the VeraCrypt volume just as you would copy them to any normal disk (for example, by simple drag-and-drop operations). Files that are being read or copied from the encrypted VeraCrypt volume are automatically decrypted on the fly in RAM (memory). Similarly, files that are being written or copied to the VeraCrypt volume are automatically encrypted on the fly in RAM (right before they are written to the disk).

Note that VeraCrypt never saves any decrypted data to a disk – it only stores them temporarily in RAM (memory). Even when the volume is mounted, data stored in the volume is still encrypted. When you restart Windows or turn off your computer, the volume will be dismounted and all files stored on it will be inaccessible (and encrypted). Even when power supply is suddenly interrupted (without proper system shut down), all files stored on the volume will be inaccessible (and encrypted). To make them accessible again, you have to mount the volume. To do so, repeat Steps 13-18.

If you want to close the volume and make files stored on it inaccessible, either restart your operating system or dismount the volume. To do so, follow these steps:

last

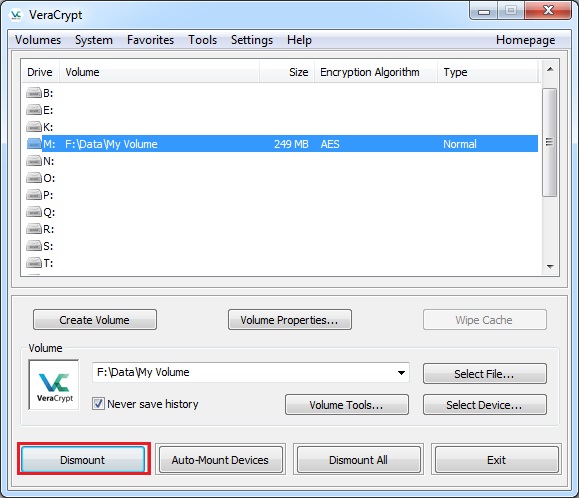

Select the volume from the list of mounted volumes in the main VeraCrypt window (marked with a red rectangle in the screenshot above) and then click Dismount (also marked with a red rectangle in the screenshot above). To make files stored on the volume accessible again, you will have to mount the volume. To do so, repeat Steps 13-18.
